Wooden louvered shutters on sliding guides in 22@ [171]

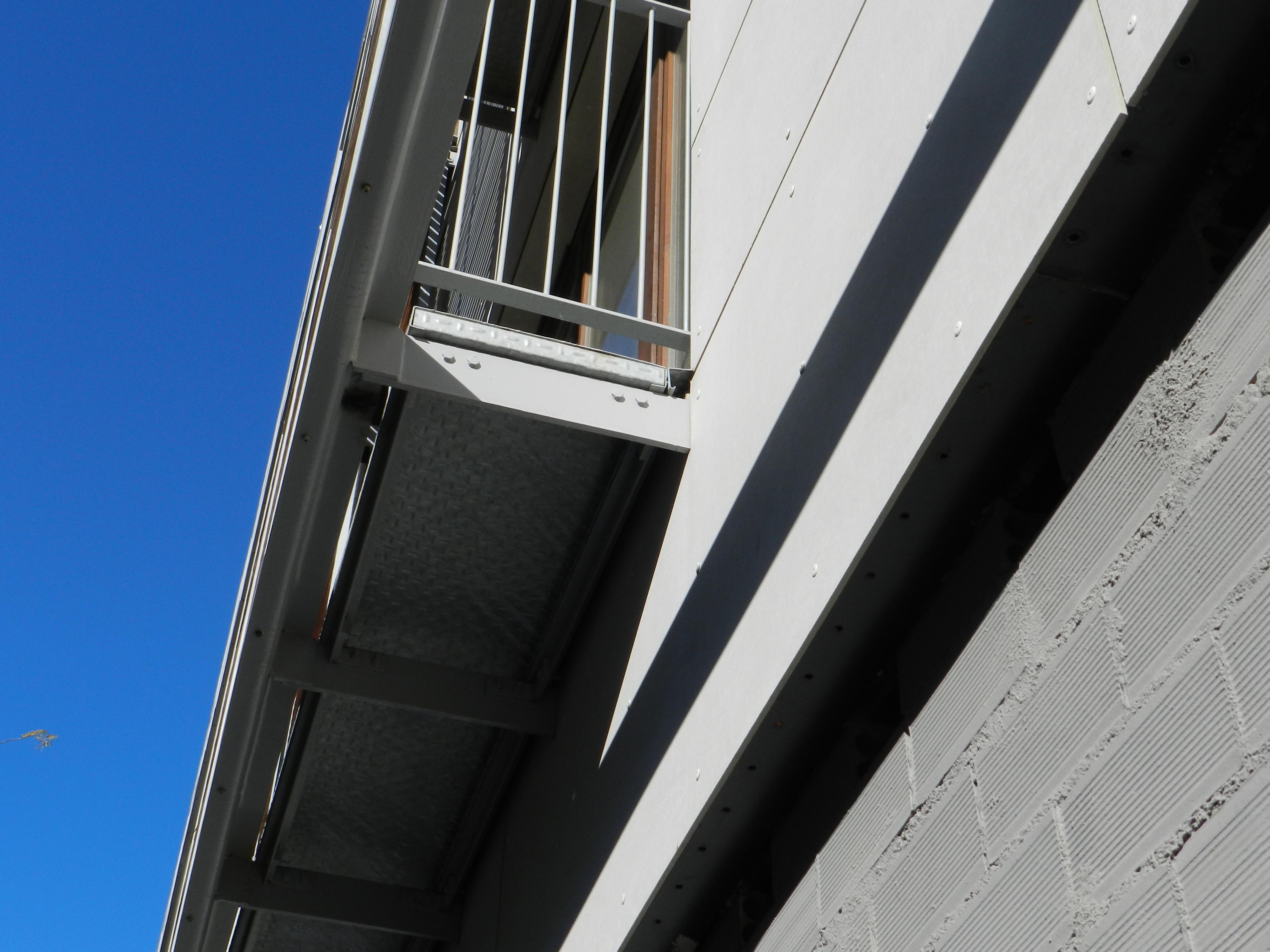

This modern building of 2012 has the highest energetic rating by the ICAEN, it has the highest level of energy efficiency and low emission of C02. It has been awarded (on October 18, 2012) with Endesa Sustainability Award, the Grand Prix to the most sustainable real estate development in 2012. It is a building of 97 social housing units.Its thermal insulation is far higher to what the regulations establish. It is built with ventilated facade, with a composition of cement boards reinforced with cellulose. It avoids thermal connection and also achieves a perfect sealing.

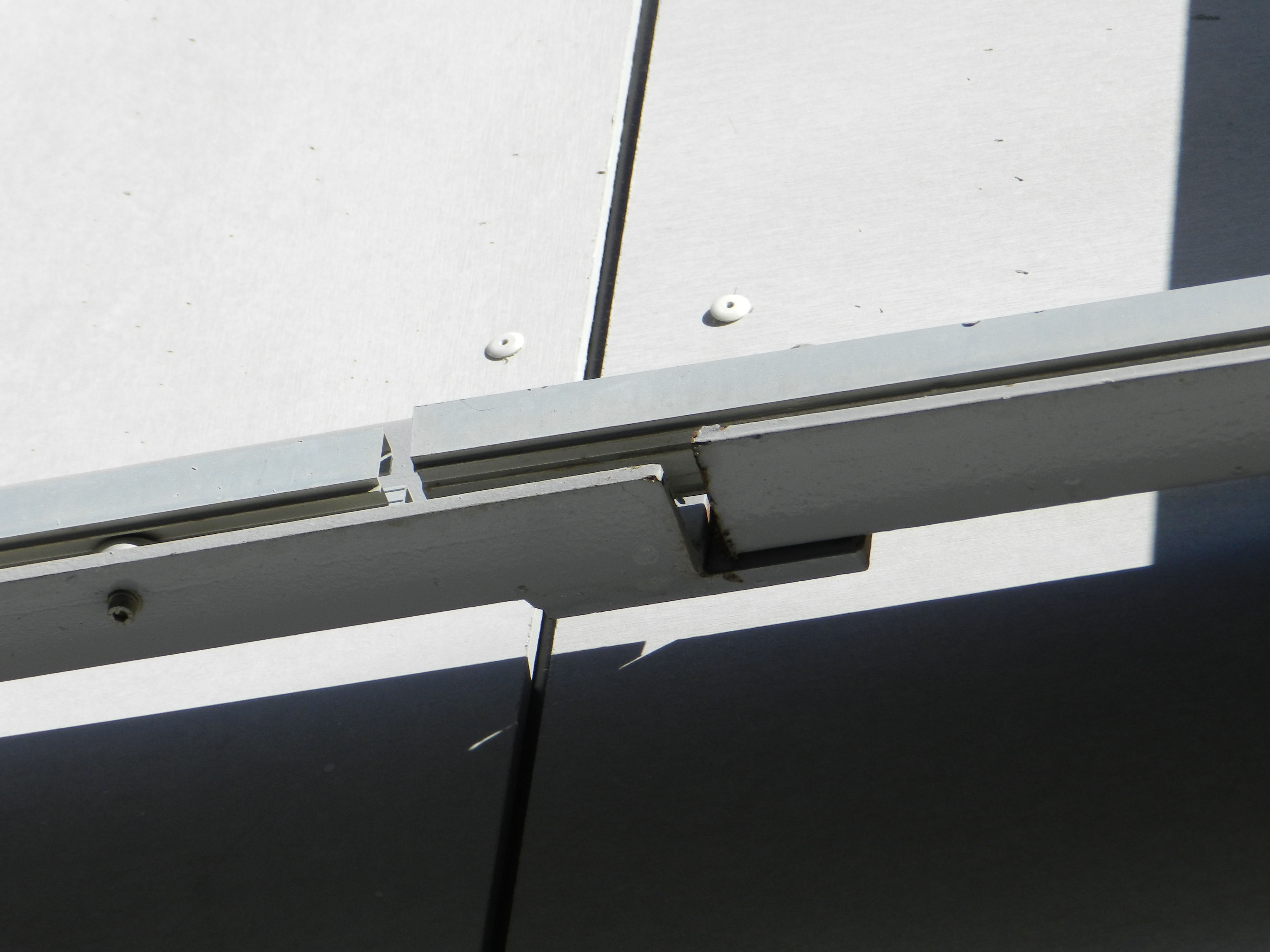

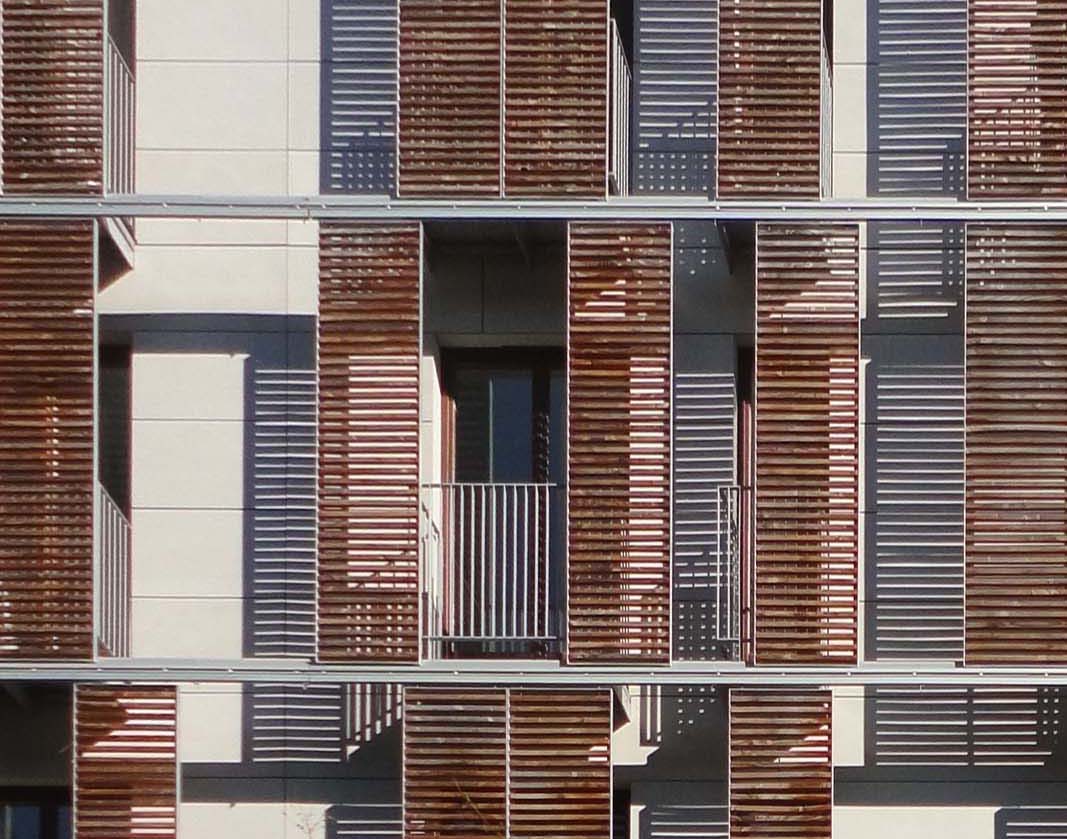

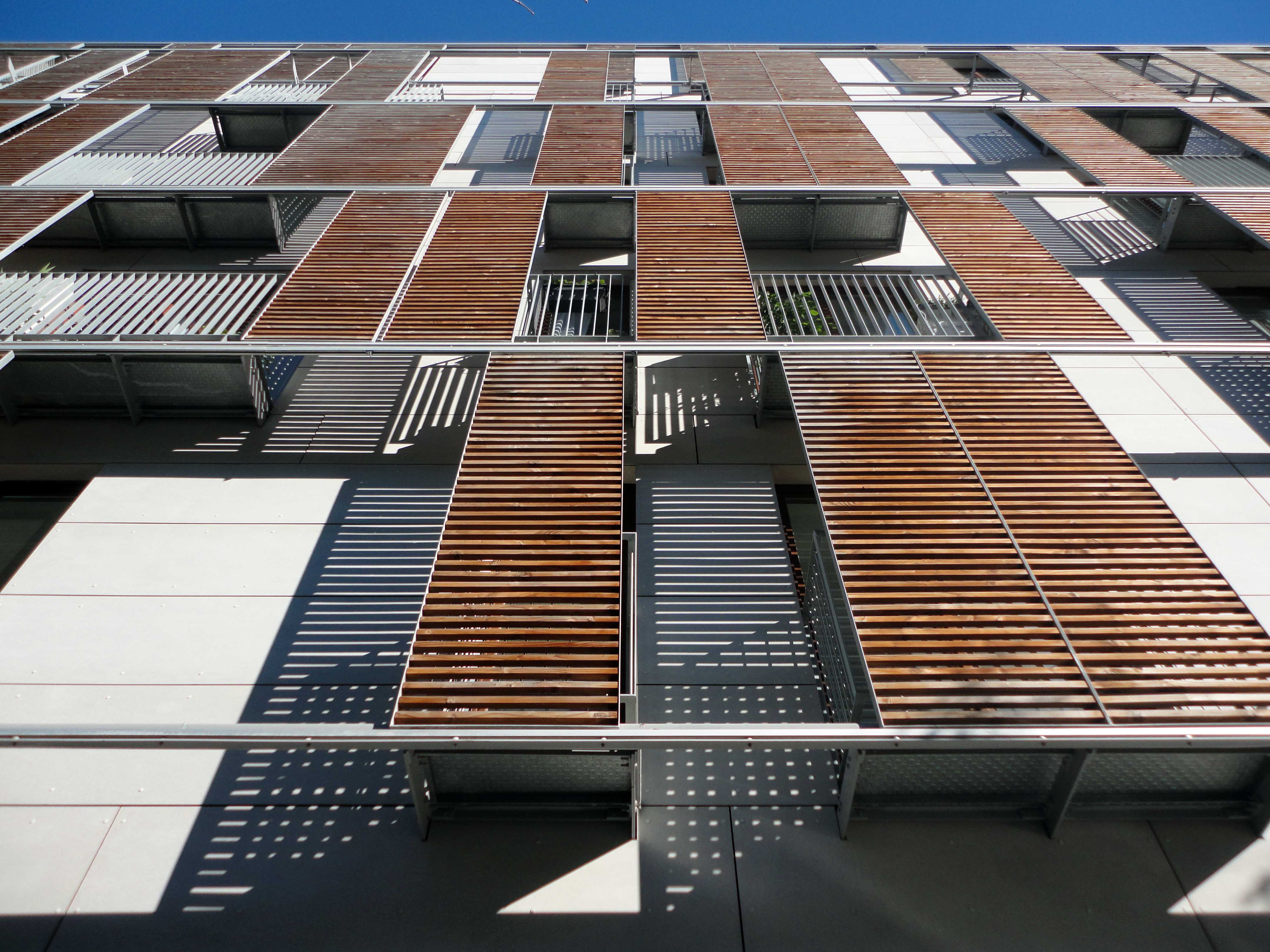

The woodwork and the louvered shutters are made of wood. These solar protections are 1 meter separated from the facade, creating a shaded balcony in each window. The shutters slide on horizontal guides, giving a strong line to the facade. The shadow created by the filters is also an important element in the composition.

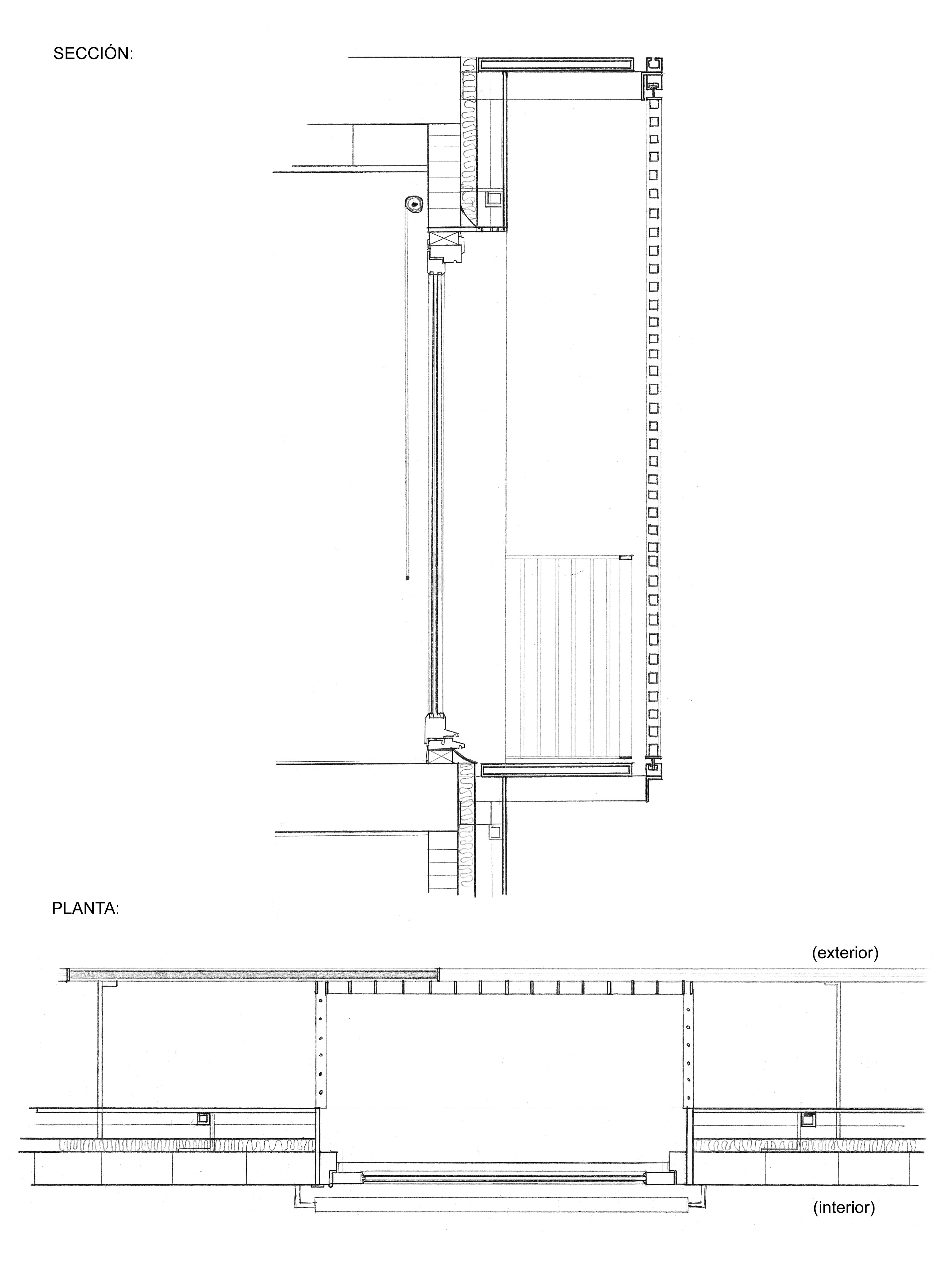

1) Opaque curtain (usually)
2) Double glass operable woodworking
3) Wooden solar protection, at a distance from the woodworking

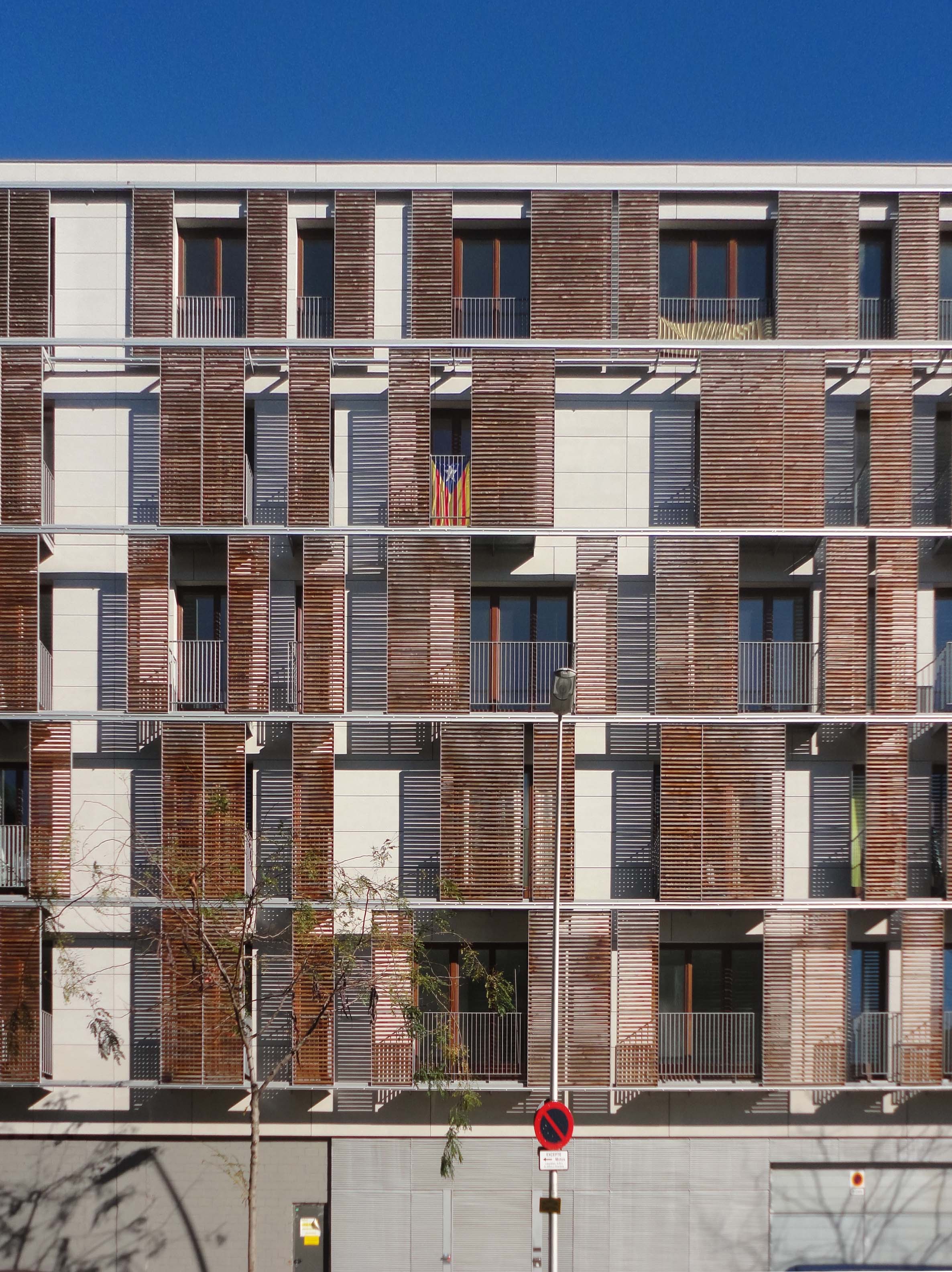

General view of the building:
Place:
22@
Roc Boronat 104
Barcelona
Spain
Period:
Intermediate Spaces:
Observations:
Photographer:

Adrián Olmo Mora

Authorship of the graphical documentation:

Adrián Olmo Mora
